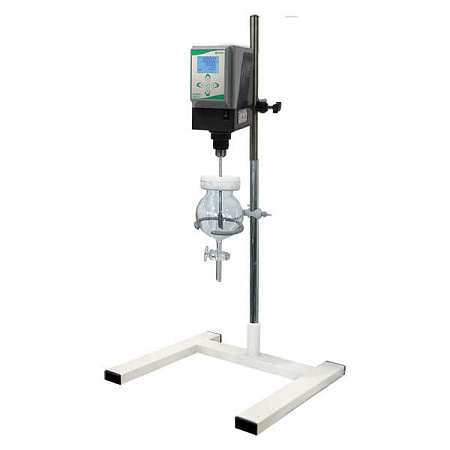

Extractor PE-8110 is intended for extraction of chloride salts from oil by water according to GOST 21534-76.
Extractor is provided with electronic stepless speed control unit and digital display which shows rotation speed of stirrer shaft. It is possible to set a timer.
Volume of stirred sample, L – 0.5
Rotation speed of stirrer shaft, rpm - 100-3000
Maximum torque, H-cm - 60
Maximum diameter stirrer shaft, mm - 10
Accuracy of speed maintenance, rpm, at least - ±20
Stirrer material – PTFE and stainless steel
Stirrer type – turbine
Maximum power consumption, W – 100
Power supply voltage (50 Hz), V - 220 ± 10
Overall dimensions (with rack), mm - 420х380х800
Weight, kg – 9
Scope of delivery:
- Overhead stirrer PE-8300 - 1 pc.
- ES-2720 rack for stirrers - 1 pc.
- Clamp for fastening the stirrer on the rack – 1 pc.
- Clamp for fastening holding ring on the rack – 1 pc.
- Stirrer IM14 for chlorine salt – 1 pc.
- ТS-2 sealing unit made of fluoroplastic - 1 pc.
- Holding ring – 1 pc.
- Round separating funnel – 2 pc.
