The Benchtop X-Ray diffractometer ECROS XRD-9500 (manual goniometer) is designed to solve a wide range of analytical and research tasks using X-ray diffraction analysis methods.
The diffractometer can be used in laboratories of scientific research and educational institutions, in factory laboratories of the cement, chemical, mining and mining processing industries, during technological control at enterprises of non-ferrous and ferrous metallurgy, ceramic and pharmaceutical industries, when solving forensic tasks, as well as for research in the field of ecology and environmental protection.
The winner of the competition in the nomination "Control and measuring devices" For ensuring high measurement accuracy in analytical chemistry" 2024.
Features:
It is included in the state register of measuring instruments. The number in the register is No. 88425-23.
- The use of a coordinate-sensitive detector ensures a high speed of the experiment and at the same time a long exposure time compared to step-by-step shooting;
- The range of simultaneous registration of the diffraction pattern is 43 degrees;
- The most compact diffractometer on the market;
- The body of the analytical unit provides full radiation protection for the operator;
- The process of installing samples and measurements is controlled using an integrated video camera;
- The country of origin of X-ray sources is the Russian Federation;
- Fully Russified software without the purchase of additional licenses;
- The continuous operation time of the diffractometer is at least 12 hours.
Technical specifications:
- Focusing X-ray optical scheme of Bregg-Brentano or Debye-Scherrer;
- Full range of diffraction pattern registration: from 0 to 154 degrees;
- Automatic movement of the X-ray source and detector;
- X-ray source - a small-sized sharp-focus X-ray tube with a power of at least 200 watts;
- The anode material of the X–ray tube is chromium (optional cobalt, copper, iron);
- Power consumption does not exceed 500 V·A;
- The diffractometer is powered by a single-phase AC 220 V 50 Hz.
Transport data/dimensions/weight:
Dimensions 620 x 550 x 590 mm.
Weight - 60 kg.
Basic equipment:
- Desktop diffractometer;

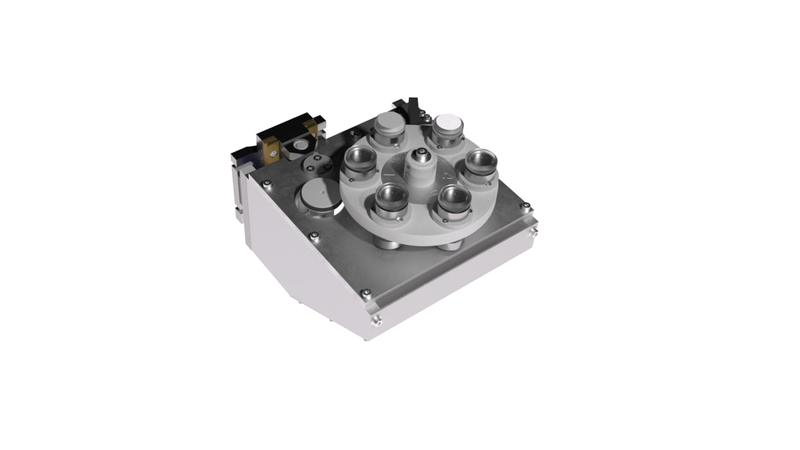

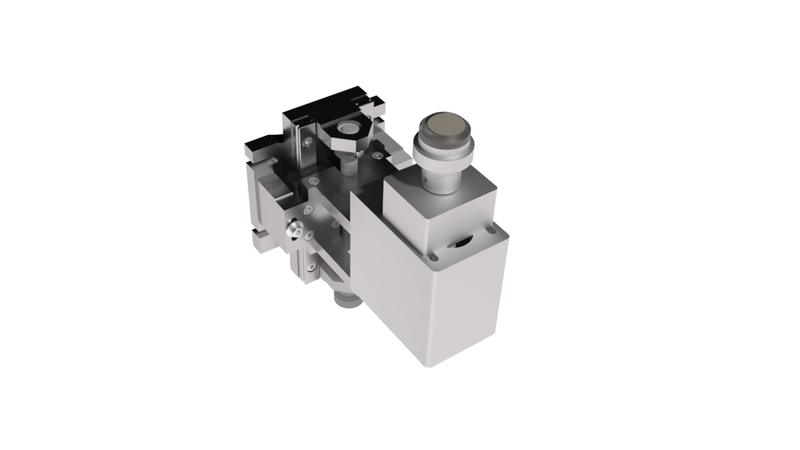

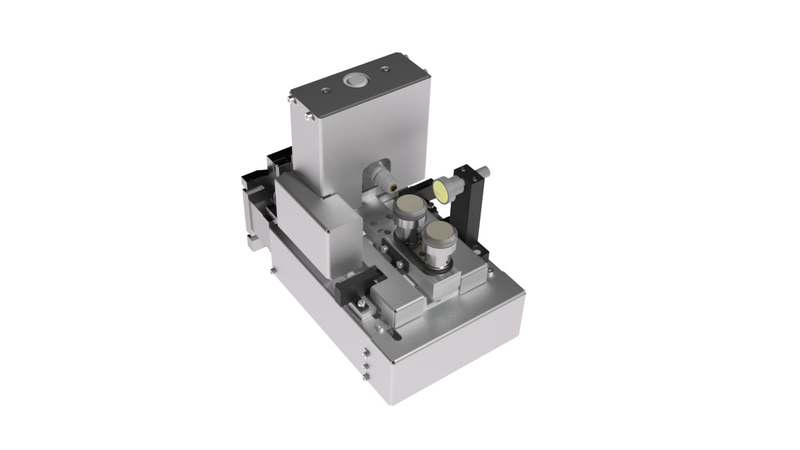

- Set-top boxes for sample analysis: a universal set-top box for the analysis of powder samples, wires and micro quantities or an automatic table for 6 samples (at the customer's choice);

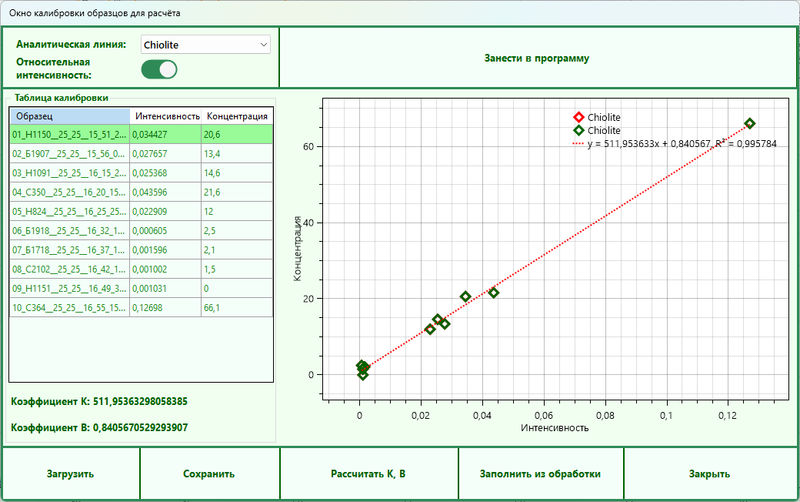

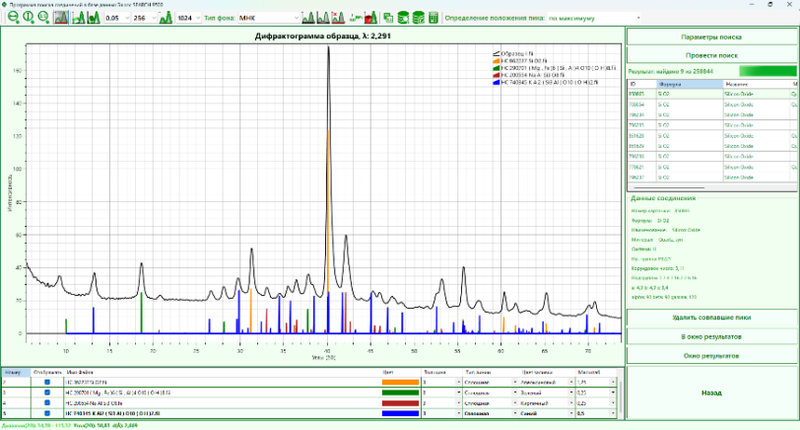

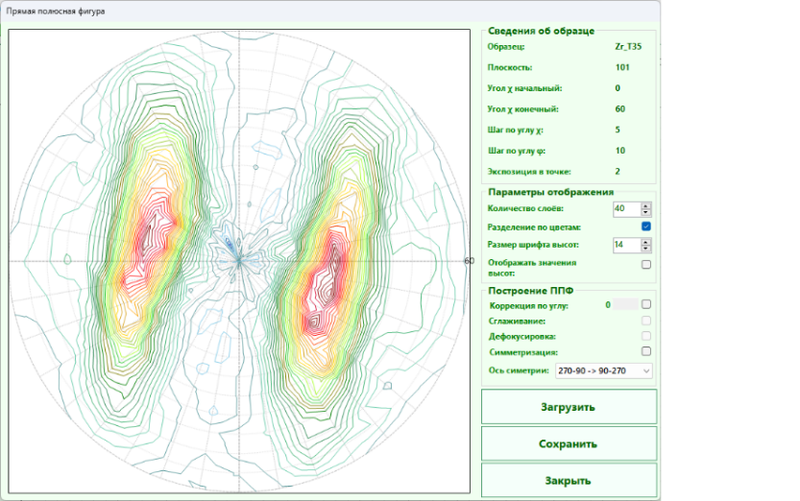

- Device control and information processing system as part of a personal computer with pre-installed special software;
- Gas station (gearbox and gas cylinder) when using an ICD detector;
- A set of accessories and spare parts (a set of cuvettes, sample holders, capillaries, a set of slots, a calibration sample, screwdrivers, keys, a multimeter, etc.);
- A set of operational documents (user manual, passport, operating manual, verification certificate).
