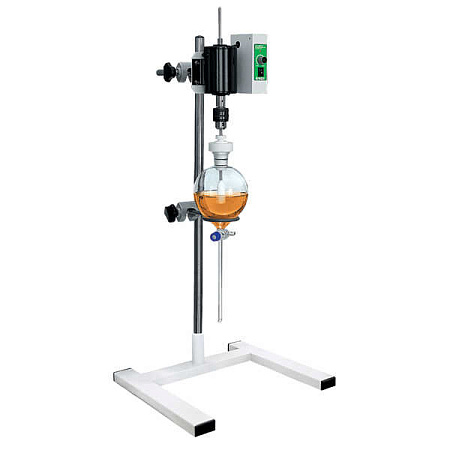

ES-8000 extractor shall be used for extraction concentration of heavy metals, petroleum hydrocarbons, polyaromatic hydrocarbons, organochlorine compounds and other pollutants from water samples by any organic solvents in separating funnels, round-bottomed flasks and flat-bottomed flasks, with the IM9 fluoroplastic turbine stirrer used to create high-speed radial liquid flows to ensure effective mixing and uniform distribution of extraction agent throughout the sample volume.
Extractor is provided with electronic stepless speed control unit.
- Volume of water sample, L – 0.25-1.0
- Rotation speed of stirrer shaft, rpm - 100-3000
- Maximum power consumption, W - 50
- Supply voltage (50 Hz), V - 220 ± 10
- Overall dimensions, mm - 420х380х800
- Weight, kg – 7.5
Scope of delivery:
1. Overhead stirrer ES-8000 - 1 pc.
2. ES-2720 rack for stirrers - 1 pc.
3. Clip – 2 pcs.
4. Fluoroplastic turbine stirrer IM9 – 1 pc.
5. ТS-2 sealing unit made of fluoroplastic - 1 pc.
6. Holding ring – 1 pc.
7. Round separating funnel (volume 1 L) – 1 pc.
