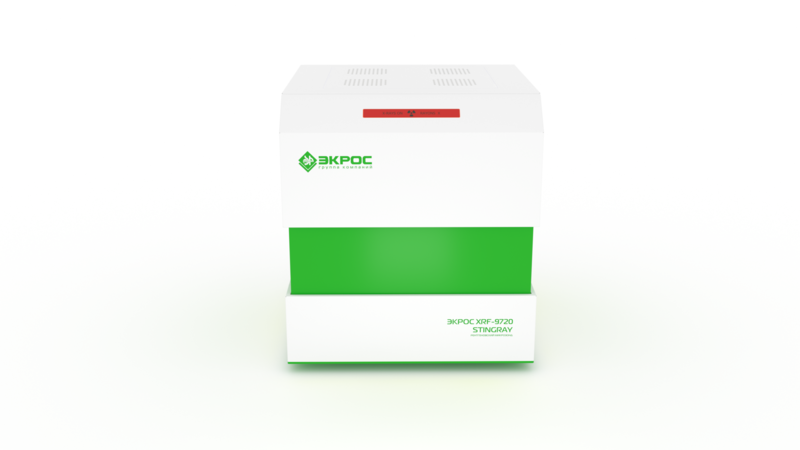

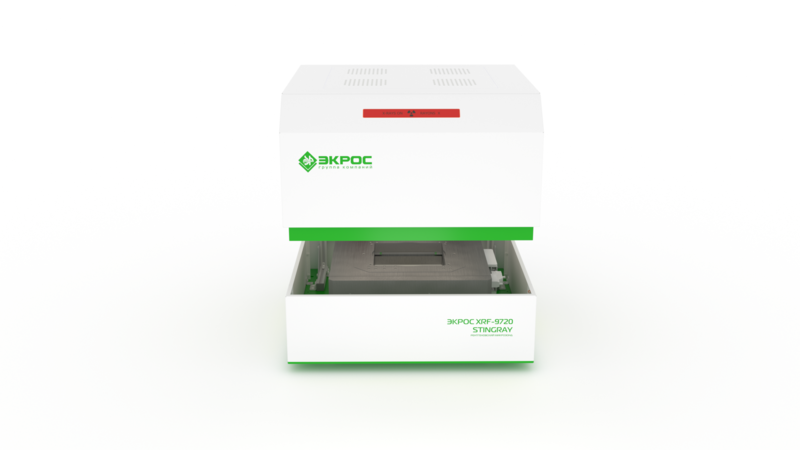

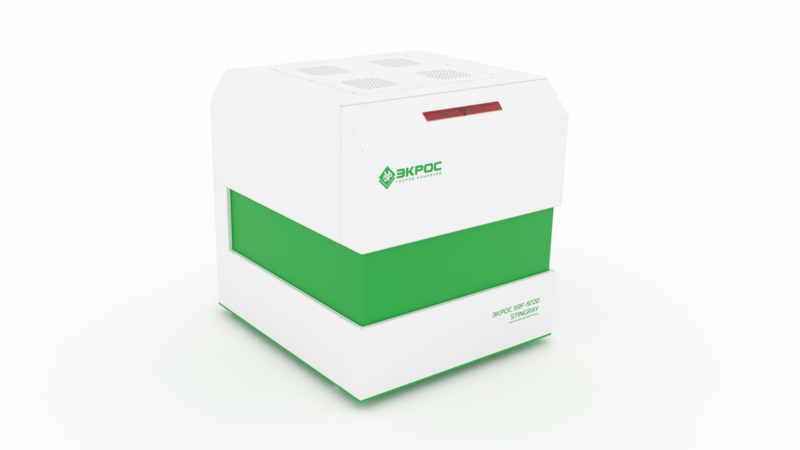

Analytical X-ray scanning microprobe EÑROS XRF-9720 STINGRAY
Price on request
The price is valid for non-residents of the Russian Federation
Remainder: 0 pc
Catalog number: 1.90.20.09720

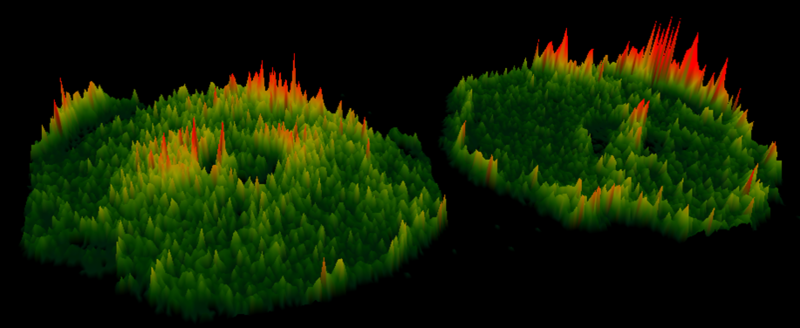

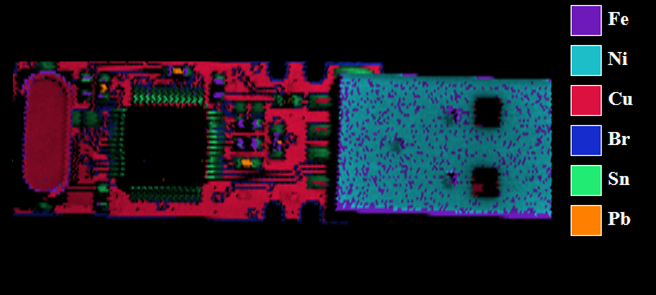

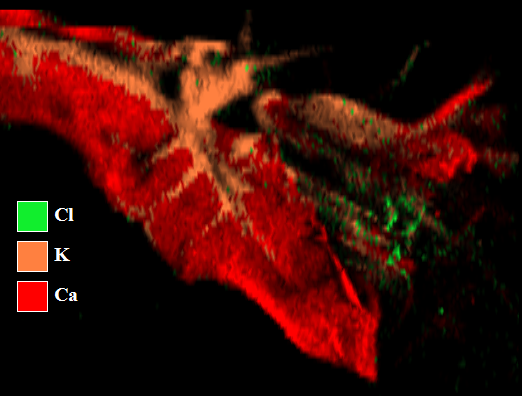

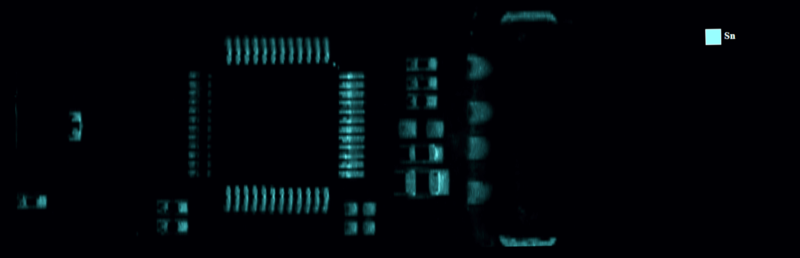

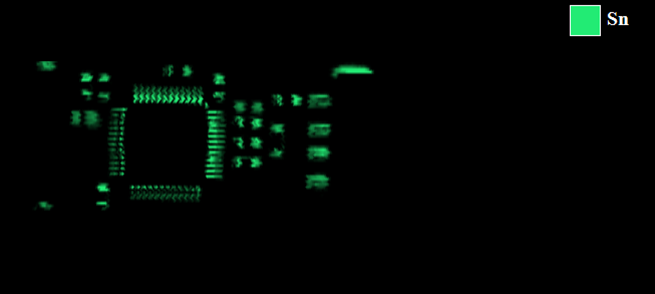

Analytical X-ray scanning microprobe EÑROS XRF-9720 STINGRAY is designed to determine the elemental microanalysis of the composition of powders, solids and liquids, as well as conducting elemental mapping and X-ray tomography.
Features:
- The measurement range of the elemental composition is from 11Na to 95Am;
- Allows you to analyze oversized objects;
- Positioning system based on an overview video camera and an optical microscope with the possibility of magnification up to 200x;
- A polycapillary X-ray lens is used to focus the primary X-ray beam.
Technical specifications:
- The range of recorded energies is (1 ? 40) keV;
- The anode material is RT – Rh (or other as agreed);
- Cooling of the X-ray tube -air;
- The maximum scanning area is 150 x 150 mm;
- Fully Russified software without the purchase of additional licenses.
Transport data/dimensions/weight:
Dimensions: 700*900*800
Weight: 90 kg
Basic equipment:
- Analytical module;
- Vacuum post;
- Control computer;
- A set of operational documents;
- A set of spare parts;
- A set of software.
