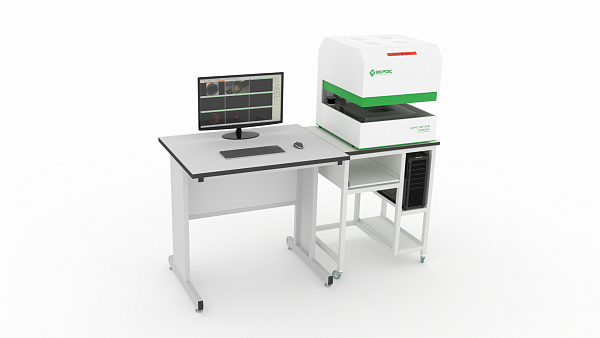

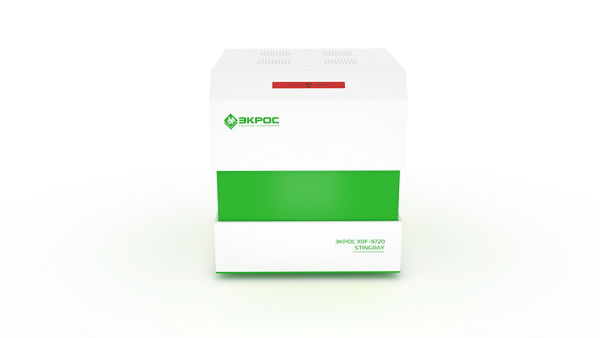

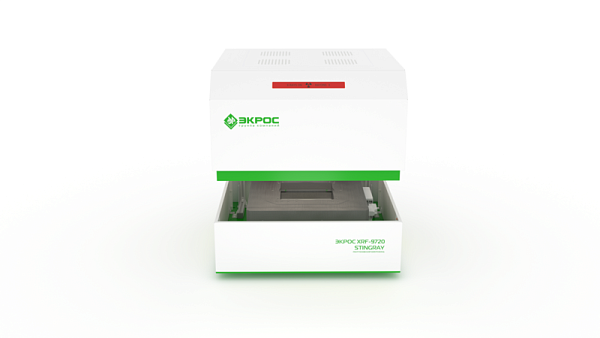

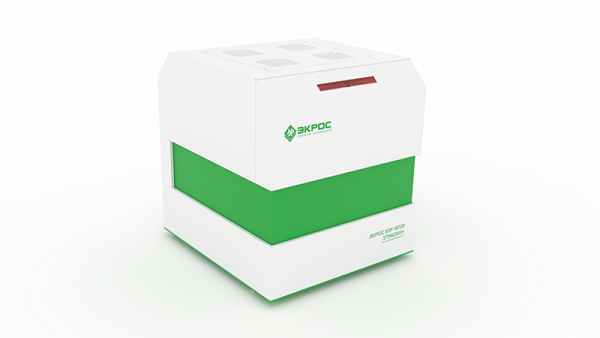

    Analytical X-ray scanning microprobe EСROS XRF-9720 STINGRAY

    Article number:1.90.20.09720
    Price on request
    +
    -
    Add to cart In Cart
    To order this product, you need to fill out a questionnaire and attach it to the order
    Download the questionnaire
    Stock balance : 0 pc
    Maximum delivery time if out of stock: upon request

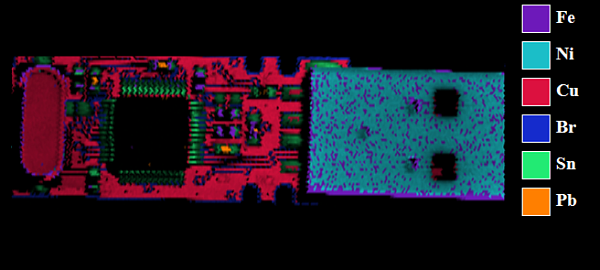

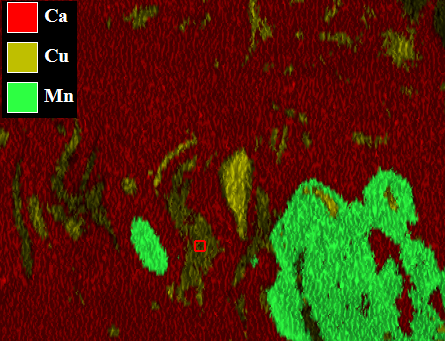

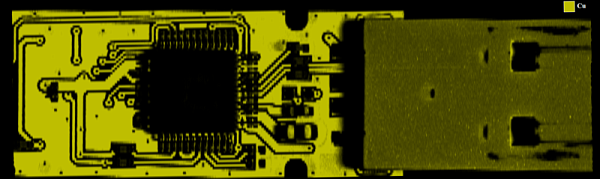

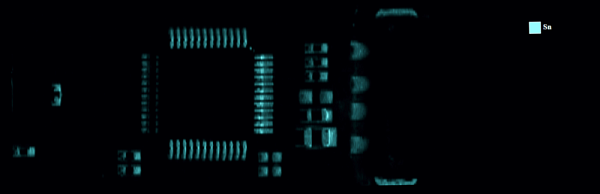

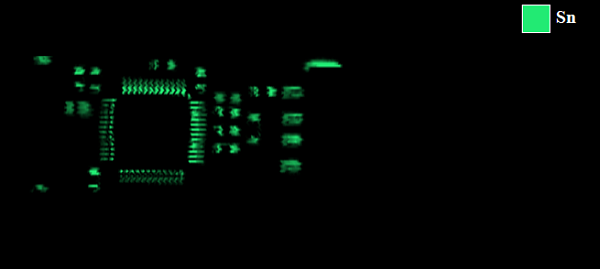

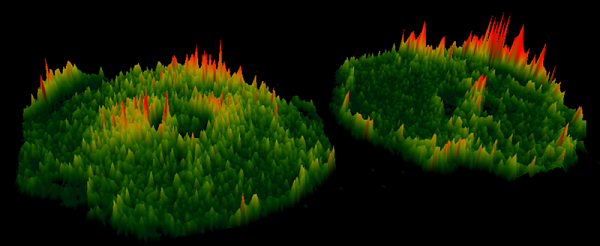

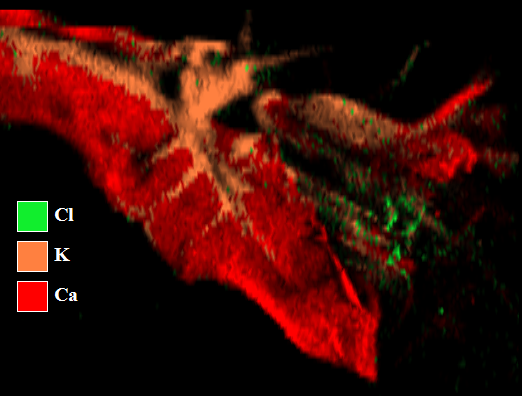

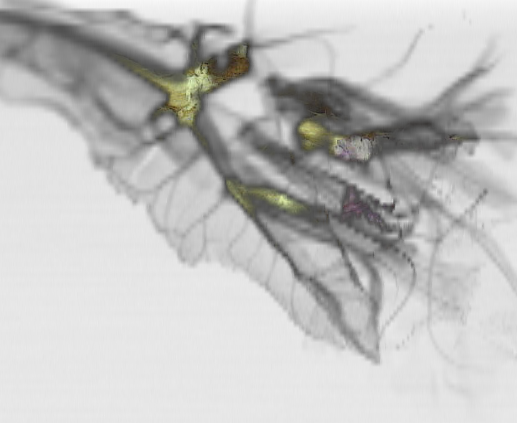

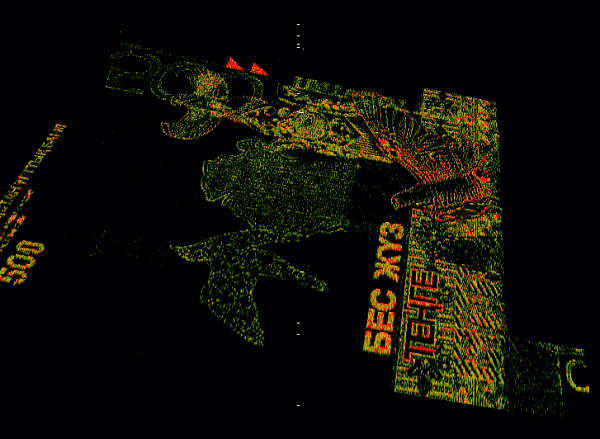

    Analytical X-ray scanning microprobe EСROS XRF-9720 STINGRAY is designed to determine the elemental microanalysis of the composition of powders, solids and liquids, as well as conducting elemental mapping and X-ray tomography.

    Features:
    - The measurement range of the elemental composition is from 11Na to 95Am;
    - Allows you to analyze oversized objects;
    - Positioning system based on an overview video camera and an optical microscope with the possibility of magnification up to 200x;
    - A polycapillary X-ray lens is used to focus the primary X-ray beam.

    Technical specifications:
    - The range of recorded energies is (1 ÷ 40) keV;
    - The anode material is RT – Rh (or other as agreed);
    - Cooling of the X-ray tube -air;
    - The maximum scanning area is 150 x 150 mm;
    - Fully Russified software without the purchase of additional licenses.

    Transport data/dimensions/weight:
    Dimensions: 700*900*800
    Weight: 90 kg

    Basic equipment:
    - Analytical module;
    - Vacuum post;
    - Control computer;
    - A set of operational documents;
    - A set of spare parts;
    - A set of software.
