Multiple laboratory shaker PE-6410 with heating

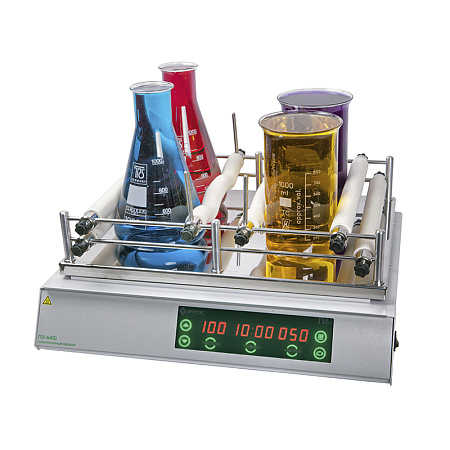

Multi-position laboratory shaker PE-6410 with heating The ECROS-6410 laboratory shaker (PE-6410) is designed for simultaneous mixing in a horizontal plane of liquids in several vessels with a volume of 100 to 1000 ml with the possibility of heating.

 Technical specifications:

- The trajectory of the platform is orbital;
- The swing range of the platform is 24 mm;
- The maximum mixing frequency is 200 rpm;
- Deviation of the mixing frequency from the set one - ± 6;
- The discreteness of setting the oscillation frequency of the platform is 10 rpm;
- The maximum adjustable heating temperature of the mobile platform is +80°C;
- Platform dimensions (width x depth) - 435x315 mm;
- The capacity of the platform for the same type of vessels:
a flat-bottomed flask of 1000 ml - 6 pcs;
flat-bottomed flask 500 ml - 6 pcs;
flat-bottomed flask 100 ml - 12 pcs;
dividing funnel 1000 ml - 2 pcs;

- The maximum load of the platform is 6 kg;
- Maximum power consumption, no more than 200 W;
- AC power supply (50 Hz) - 220 ± 10 V;
- Overall dimensions - 470x390x185 mm;
- Weight - 27 kg;

Transport measurement:
1 wooden box, 600x520x290 mm, 35 kg.
