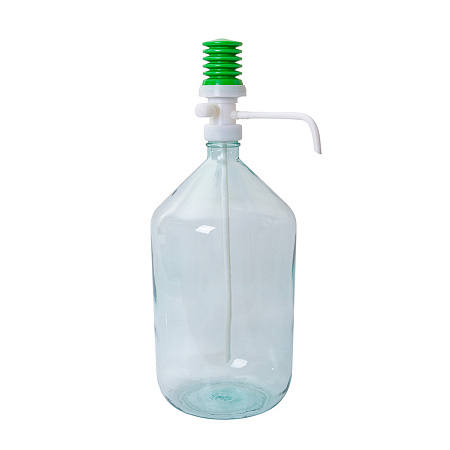

Pumping system PE-3010 with manual bellows pump.

Pumping system PE-3010 with manual bellows pump is used for pumping aggressive liquids (mineral acids, alkali solutions, solvents, etc.) from standard glass or polyethylene bottles with a screw cap neck into any other containers. Excessive air pressure in the bottle is created using a manual bellows pump. The updated pumping system, compared with the previous version, is equipped with a bypass valve, which eliminates the possibility of contact with aggressive vapors during pumping.

Technical specifications:
 - Capacity - up to 4.5 l/min;
 - Material - fluoroplast-4 or UHMWPE;
 - The diameter of the bottle neck is 60 mm;
- Bottle capacity - 20 l;
 - Overall dimensions – 110 x 250 x 670 mm;
 - The outer diameter of the tubes is 12 mm;
 - Weight - 0.7 kg.

 Standard equipment:
 - Pumping system - 1 piece;
 - Bellows pump - 1 pc.

The bottle is not provided as standard equipment.

Transport measurements: 1 box, 480 x 250 x 170 mm., 0.8 kg
