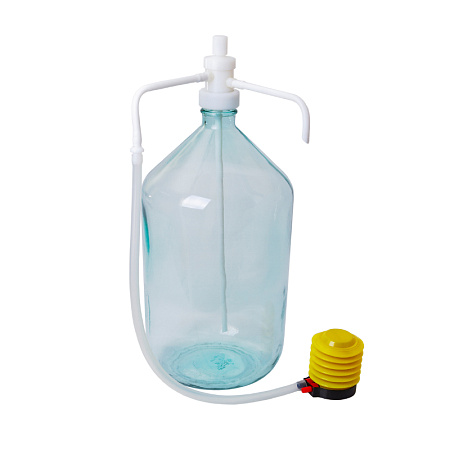

Pumping system PE-3000 with foot diaphragm pump.

Pumping system PE-3000 with foot diaphragm pump is used for pumping aggressive liquids (mineral acids, alkali solutions, solvents, etc.) from standard glass or polyethylene bottles with a screw cap neck into any other containers. The excess air pressure in the bottle is created using a foot pump frog.

 Technical specifications:
 - Capacity - up to 4.5 l/min;
 - Material - fluoroplast-4 or UHMWPE;
 - The diameter of the bottle neck is 60 mm;
 - Bottle capacity - 20 l;
- The outer diameter of the tubes is 12 mm;
- Overall dimensions - 241 x 244 x 612 mm;
 - Weight - 0.6 kg.

Standard equipment:
 - Pumping system - 1 piece;
 - Frog pump - 1 piece;

The bottle is not provided as standard equipment.

Transport measurements: 1 box, 480 x 250 x 120 mm, 1.0 kg.
