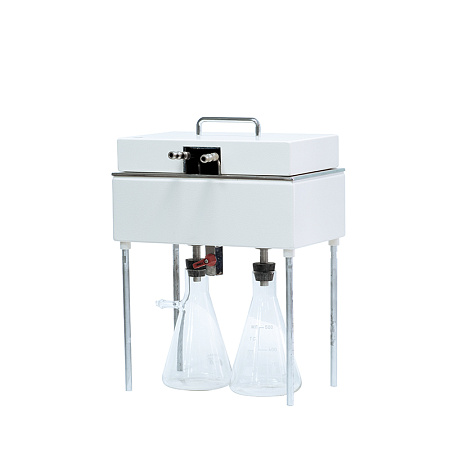

The Cooling
bath PE-4200 for paraffin determination in crude oil is used in the filtration
apparatus during analysis in accordance with GOST 11851-85 "Oil. The
method of determining paraffin".
Technical
specifications:
- Operating
temperature range - (-30...+100 ° C);
- Bath
volume - 3 liters;
- Number of
landing slots for funnels - 2 pcs;
- Overall
dimensions of the bathhouse without supports - 290x180x204 mm;
- Overall
dimensions of the bathhouse with installed supports - 290x180x400 mm;
- Overall
dimensions of the bath - 260x150x85 mm;
- Weight -
4.8 kg.
The bath is equipped with a bracket for mounting a thermometer. To install filter funnels in the bottom of the bath there are 2 symmetrically arranged holes. There is a drain tap in the bottom of the bathhouse, which allows you to connect a flexible hose.
What is
included in the delivery package:
- Cooling
bath - 1 piece;
- Cover - 1
piece;
- Support -
4 pieces;
- Heat
exchanger with Dnar fittings = 12 mm - 1 piece;
- Faucet ½’
- 1 piece;
- Fitting
½’ - 1 piece;
-
Thermometer bracket - 1 piece;
- Rubber
stopper for sealing funnels - 2 pcs;
- Rubber
stopper for sealing flasks - 2 pcs;
- Passport - 1 pc.
