Application:

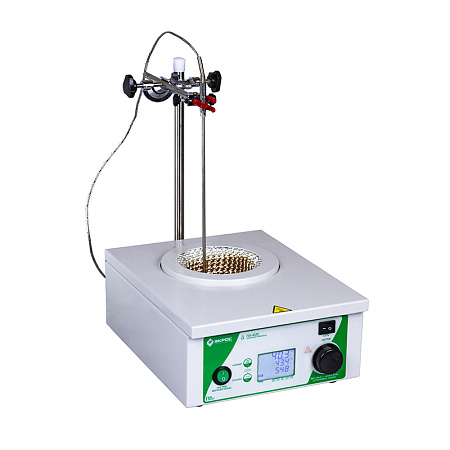

Heating of liquids in round-bottomed flasks with a volume of 0.5 liters in the temperature range from room temperature to 400 ° C.

Features:

- Two-zone heating element. The ability to turn off the upper heating zone.

- The heating element is woven from safe non-toxic fiberglass with woven nichrome wire, which eliminates its residual deformation and ensures a tight fit to the walls of the vessel to minimize heat loss and increase the energy efficiency of the device.

- Informative liquid crystal display.

- Electronic temperature controller (PID).

- Automatic and manual adjustment of the heating intensity.

- Timer function with visual and audible alarm of the end of heating.

- Control lock to protect against accidental change of operating mode.

- The ability to connect an external temperature sensor (supplied additionally!)

- Identification and indication of possible malfunctions and malfunctions.

- The metal body of the device is painted with KARUMEL powder paint, which has adhesion resistance, scratch resistance and corrosion resistance.

Technical specifications:

- Body: steel, coated with a particularly chemical resistant powder paint;

- Heating element: woven fiberglass with nichrome wire;

- Maximum heater temperature: 450°C;

- Flask volume: 500 ml;

- Weight: 3.4 kg;

- Overall dimensions (LxWxH) - 220x310x120 mm;

- Voltage: 220-230V, 50/60 Hz;

- Power: 230 Watts.

Notes:

1. The maximum heating temperature is reached when both heating zones are switched on.

2. Due to the presence of heat losses, the temperature of the liquid in the vessel can almost never reach the maximum temperature of the heating element, therefore the set temperature is limited to 400 ° C.

Transport data/dimensions/weight:

1 box, 240 x 355 x 140 mm.

Basic equipment:

Heating mantle - 1 pc.

Network cable - 1 pc.

Passport and RE - 1 pc.
